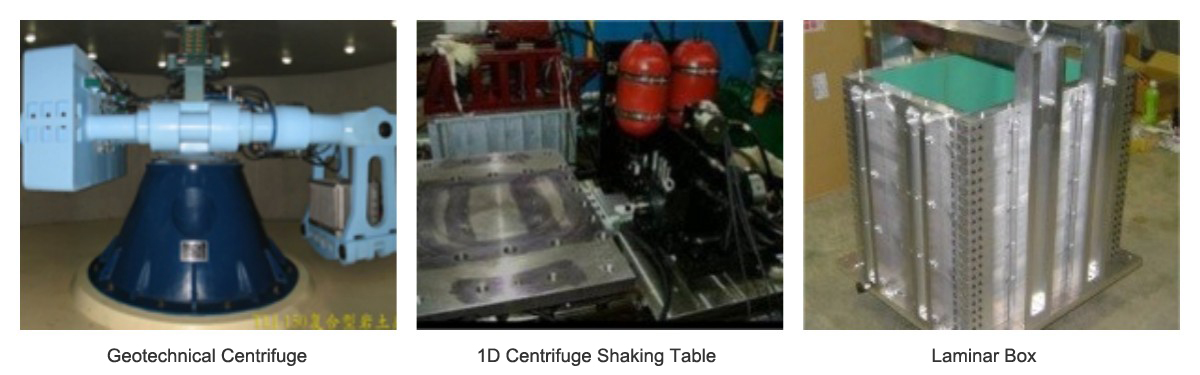

Centrifuge Tester
Main specifications of Geotechnical Centrifuge:
| Main Capacity | Effective radius | 3.0m |
| Max speed of rotation | 244rpm | |
| Main motor | 250kW | |
| Maximum acceleration | 200g | |
| Maximum payload | 1.5MN | |
| Platform size | Length | 1.6m |
| Width | 1.25m | |
| Height | 2.17m | |
| Data Acquisition | Static test | 40 channels |
| Dynamic test | 32 channels |
Main spectifications of the Centrifuge Shaking Table:
- Max. Acc.: amax=20g
- Max. Velocity: Vmax=38cm/s
- Max. Disp.: Amax=±6mm
- Frequency: f=20～200Hz
- Payload: Mmax=300kg
- Wave: Sine Wave, Earthquake wave
- Time Duration: 1 second
