Multi-Function Shake Table Array

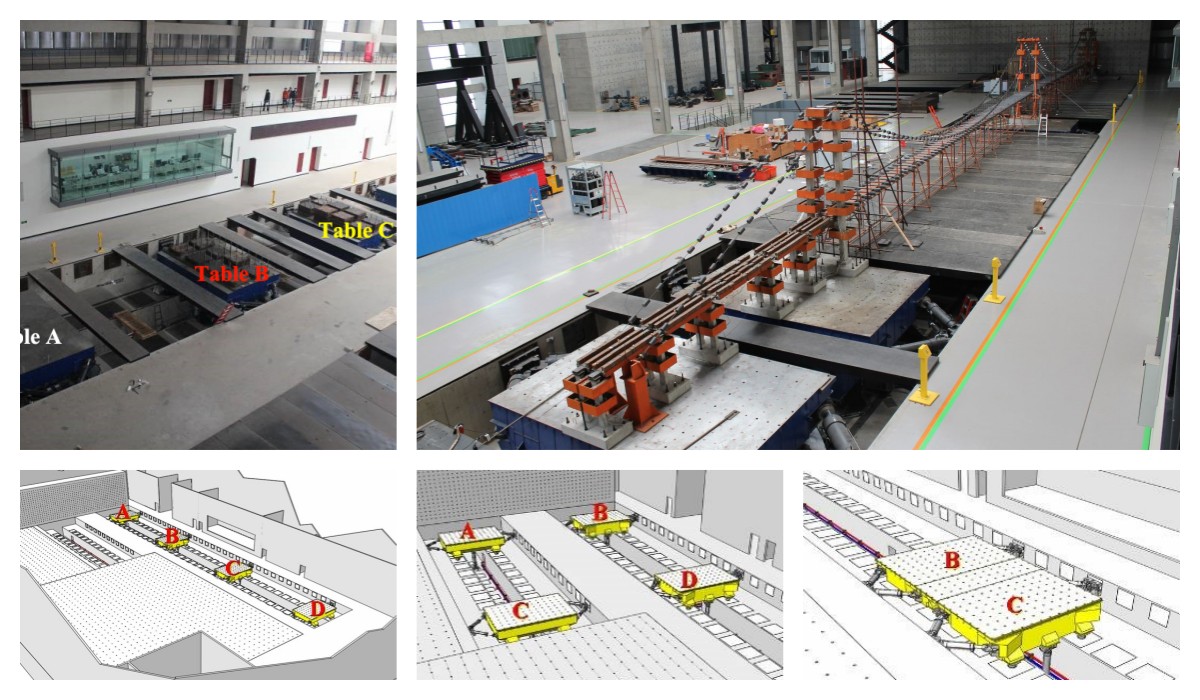

Description: The multi-functional shake table consists of four 6m x 4m shaking tables and one reaction wall. Each of the table has 2 horizontal translational degrees of freedom. The tables are situated in two trenches (70 m and 30 m).


Table Table A and D Table B and C
Table dimension 6m×4m
Largest payload 30 ton 70 ton
Degrees of freedom 2 horizontal degrees of freedom.
Displacement 500mm both horizontal directions
Velocity 1000mm/s both horizontal directions
Acceleration 1.5g both horizontal directions
Frequency 0.1 ~50 Hz
Base moment 200 ton∙m 400 ton∙m
