Double-Shear Bearing Tester

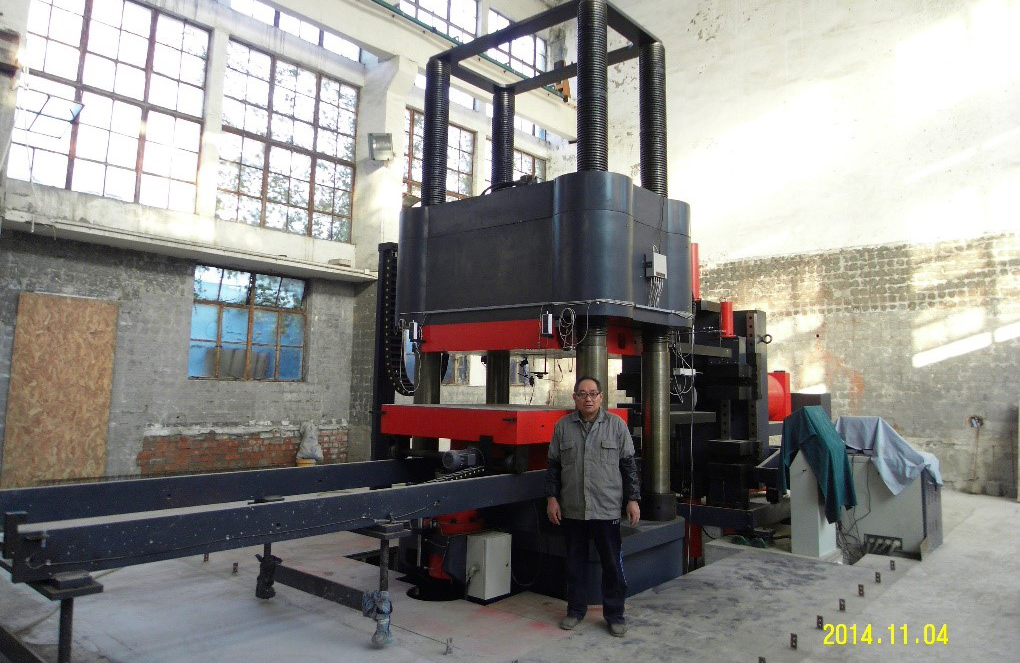

20000kN Double-shear Rubber Bearing Tester
Description: This tester was equipped for testing the performance of various rubber bearings. Some vertical-bearing specimen, such as column with a height of no more than 2.0 m, also can be tested by this tester.
Capacities:
| Max. Vertical | Max. Horizontal | Horizontal | Max. size of specimen |
| Force (kN) | Force (kN) | Stroke(mm) | (mm) |
| 20,000 | 4000 | ±450 | 1,500×1,500×2,000 |
