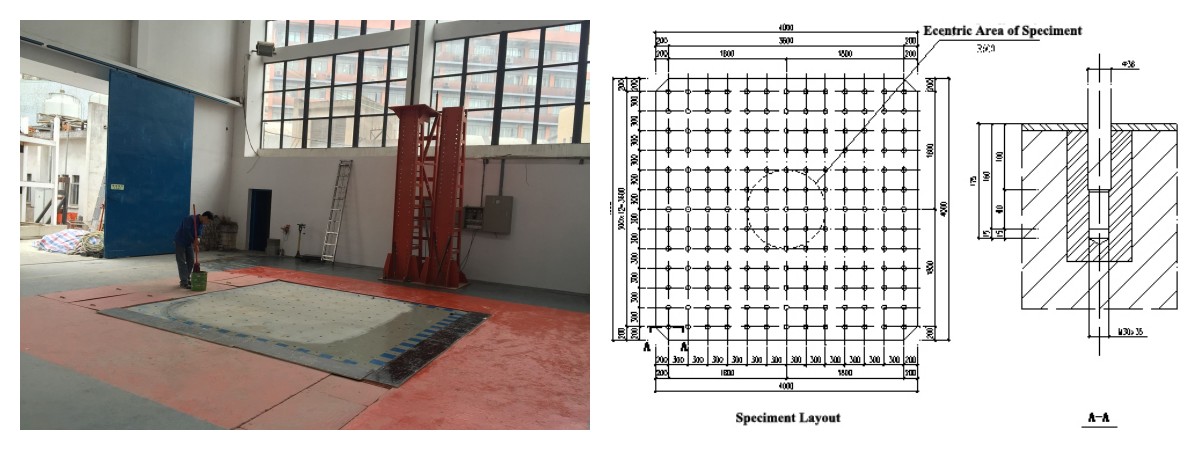

Single Shake Table 6DOF
Description: MTS shaking table, 3 directions and 6 D.O.Fs
Capacities:
- Dimension: 4.0 m×4.0 m
- Maximum payload: 25 Ton
- Working frequency: 0.1~50Hz
- Degree of freedom: 6
- Sampling channel: 128
Performance under 15 Ton payload
| Direction | Max acceleration | Mac Velocity | Max Displacement |
| X | 1.2g | 1000mm/s | 100mm |
| Y | 0.8g | 600mm/s | 50mm |
| Z | 0.7g | 600mm/s | 50mm |
